Labeling Machine with BeiJer X2pro System Controllers.
Components of Machine Integrated: Cartridge Pouching & Labeling Machine with BeiJer X2pro System Controllers.
Information about a 20-Bay Cartridge Housing Stacker system potentially utilizing a Denso HM-40702M-W 4-Axis 700mm SCARA Industrial Robot:

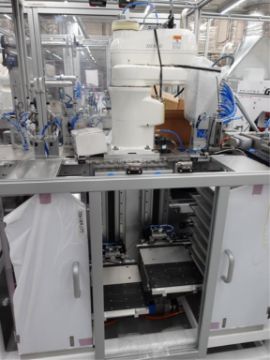

- Denso HM-40702M-W Robot:
- Type: 4-axis SCARA (Selective Compliance Assembly Robot Arm) robot.
- Reach: 700mm.
- Payload: Can handle a maximum payload of 20 kg. Note: The specific model HM-4070* has a 10 kg maximum payload, while the HM-4A70* has a 20 kg payload.
- Key Features: Offers high speed and repeatability, making it suitable for tasks requiring precision and quick movements. It features a robust design with a high-power AC servo motor, contributing to its speed and controllability.
- Potential Options: Available in standard or dust- and mistproof (IP65) configurations.
- 20-Bay Cartridge Housing Stacker:
- This part of the system would likely involve a conveyor or staging area where cartridge housings arrive.
- The system would need 20 bays for stacking the housings.
- The Denso HM-40702M-W robot would be used to pick and place the cartridge housings from the conveyor into the designated stacking bays.
- Benefits of using a SCARA robot for this application: SCARA robots are known for their speed, accuracy, and repeatability in pick-and-place tasks. They are particularly well-suited for assembly operations.
- The system would likely utilize a sophisticated control system to coordinate the movements of the robot, the conveyor, and the stacking bays.
- Advanced sensors and vision systems could be integrated to accurately identify, locate, and orient the cartridge housings before picking them up.
- Cartridge Stacking Applications:
- SCARA robots are widely used in industrial settings for stacking and material handling, including handling delicate components in industries like electronics.
- While the exact type of cartridge is not specified, SCARA robots can handle diverse objects and stacking patterns, making them adaptable to various requirements.
- Important Considerations:
- Payload Capacity: Ensure that the weight of the cartridge housings, plus any end-of-arm tooling (EOAT), does not exceed the maximum payload capacity of the Denso HM-40702M-W, which is up to 20kg.
- Reach and Workspace: The 700mm reach of the robot needs to be sufficient to access all 20 stacking bays effectively.
- Repeatability: The high repeatability of the Denso HM series ensures accurate and consistent stacking of the cartridge housings.
- Software and Integration: The ease of use and features of the robot's development software will be important for programming and integration.
This setup suggests a high-speed, automated system for stacking cartridge housings, leveraging the precision and efficiency of a Denso HM-40702M-W SCARA robot.
